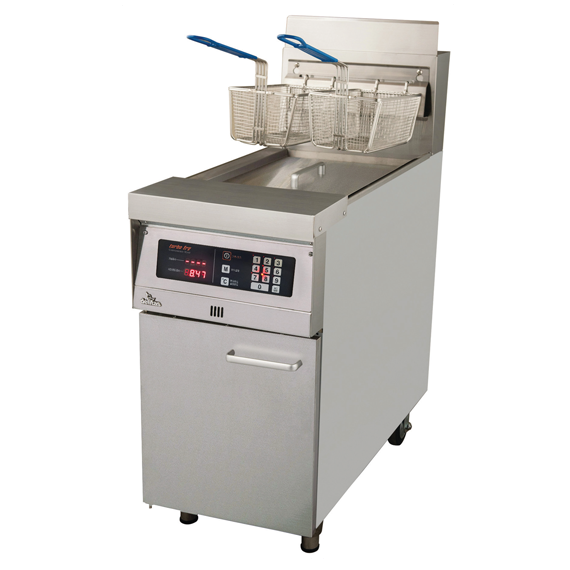

High Efficiency Energy Saving Gas Fryer



KF-121GM
This open pot fryer's advanced metal fiber burner technology and precision controls give you excellent temperature regulation. The Delitas fryer features an easy-to-clean open pot design with a deep cold zone to trap sediment away from the cooking area, which increases food quality and prolongs oil life.
Combine advanced combustion technology with decades of experience and customer’s feedback to set the standard for high efficiency operating.
Offer standard features that add convenience and ease of use
- Open frypot is easy to clean
- Convenient electronic ignition, melt cycle mode and boil-out temperature control.
For Energy Saving High Production frying, Specify the Delitas high efficiency gas fryers with 3 Path Heat Exchange Supreme Burner Technology. Low Exhaust Heat and quick temperature recovery.
Programmable digital controller offer the precise heat responses and cooking compensation. (Range: 30 ~ 190℃)
LED's display a cooking time countdown, and provide precision frypot temperature checks, in addition to programmable "shake" and "hold" times, and much more.
Safety Technology
- Safety device for sensing a flame & turbo fan.
- Dual overheat protector.
- Self-diagnosis control.
- Audible alarm system for door opening & safety device for oil drain.

Inquiry  Manual  Print  List



· Design
  Open full frypot design, easy-to-clean
· Capacity
  25-liter(50-lb)
· Input
  19,700 kcal(22.7kw/hr)
· Frying area
  35 x 38 x 11 cm
· Cooks 66lbs.(30kg) of French fries/hr · Controller
  KT4.1 controller standard
· Cold Zone
  Deep cold zone with full-port, ball-type drain valve
· Burners
  semi-permanent Metal Fiber Turbo burner
· Construction
  Stainless steel frypot and door
· Ignition
  Electronic ignition by MICOM
· Baskets
  Two twin
· Melt Cycle
  Automatic (until 82°C )
· Boil-out
  Boil-out temperature control
· Temperature Probe & Control
  Center-mounted, RTD 1° compensating temperature probe 93 ~ 192°C
· Door safety control for preventing fire · Casters + adjustable legs


· W x D x H : 40cm x 80cm x 117cm
· Weight : 65kg



· Baskets
· Spit rod
· Cover
  Stainless steel frypot cover
· Connecting cover
· Front cover
  For 2, 3 fryers
· Casters
  Set of four
· Sediment Tray
· Drain pipe
